Integrated Tube Amplifier
Single-ended
Class-A
Dual Mono

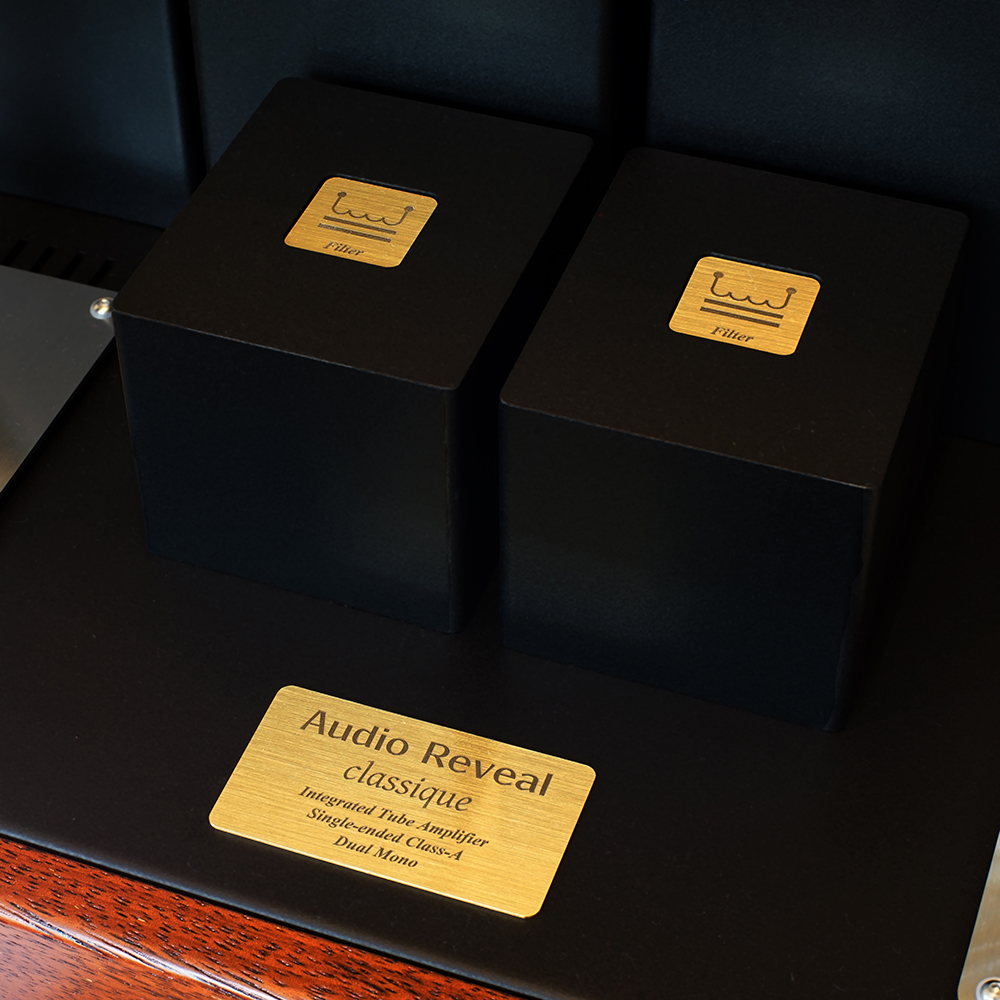

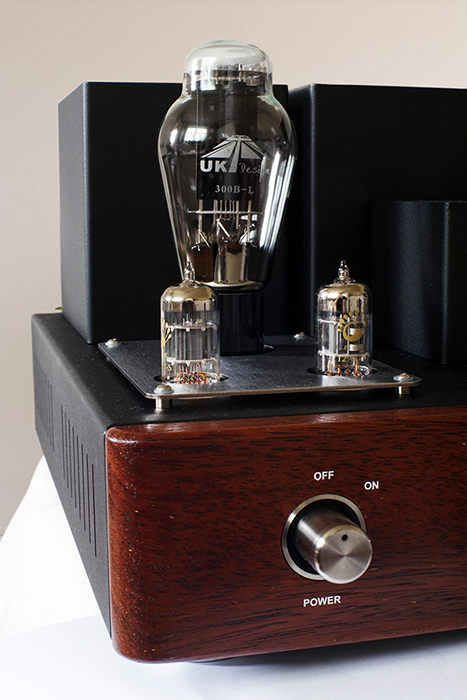

Audio Reveal Classique amplifier is a dual mono design with separate power supply sections and mains transformers for both channels. The preamplifier section features 12AT7 and 12AU7 tubes, while the output stage uses a single 300B triode. The anode voltage of the tubes is additionally filtered by chokes in an LC circuit – the chokes are located under additional metal cups.
The amplifier was built using high-quality components.
Technical Data
| Type | Integrated Tube Amplifier |
|---|---|
| Single-ended | |
| Class-A Dual Mono | |
| Model | classique |
| Driver Tubes | 2 x 12AT7 (ECC81) |
| 2 x 12AU7 (ECC82) | |
| Power Tubes | 2 x 300B |
| Frequency Response | 20Hz – 30kHz +0dB, -3dB |
| Power | 8W (8Ω, 4Ω @1kHz) @THD 5% |
| Speakers impedance | 4 – 8 Ω |
| Speaker terminals | 4Ω / 8Ω |

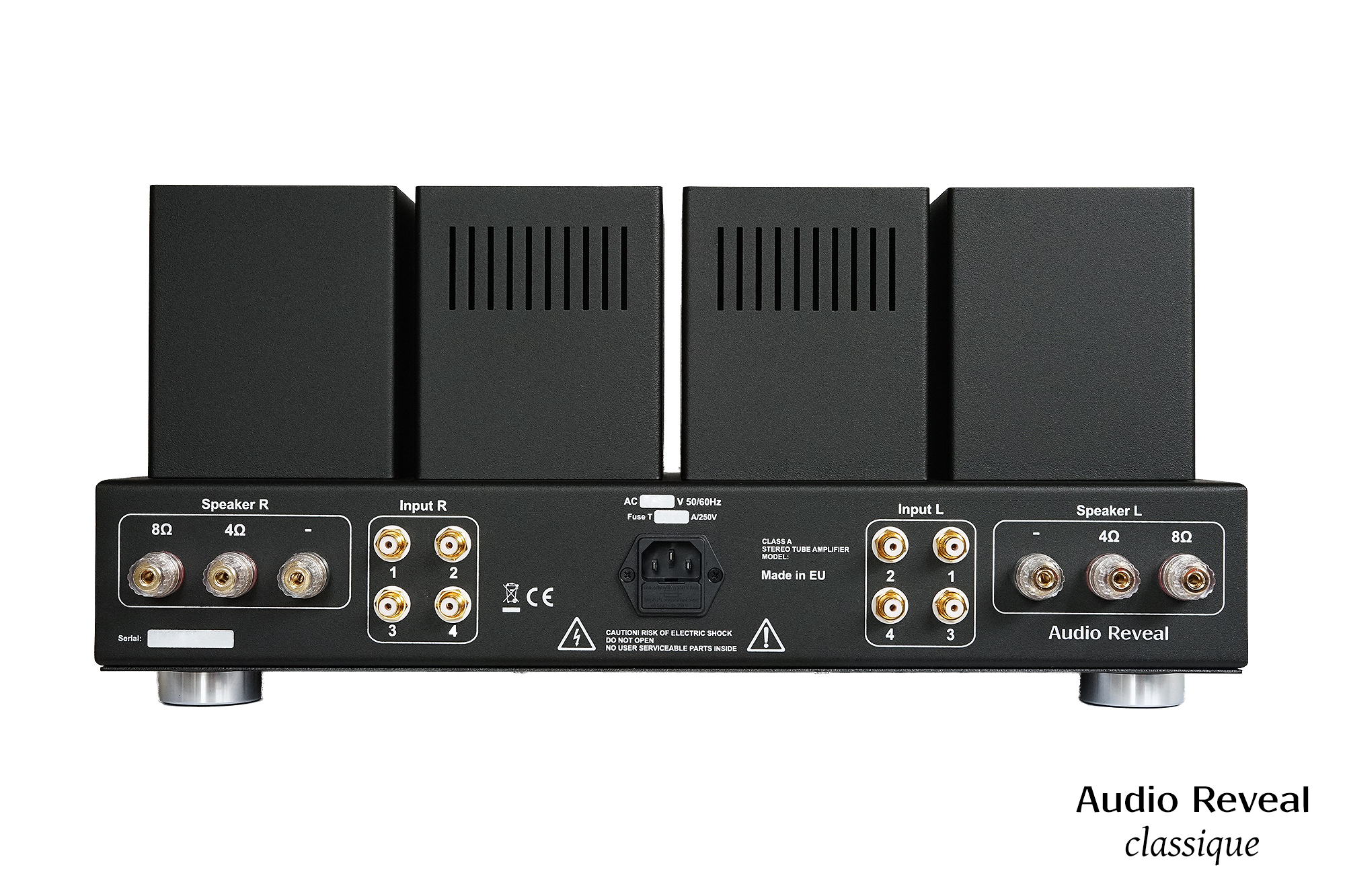

| Inputs | 4 x RCA |
| Input impedance | 50k ohm |
| Remote control | Audio Reveal RM-1 |
| Start-up Time | 60s |
| Power consumption (nominal) | 145W |
| Dimensions | 476 x 410 x 220 |
| Net Weight | 33.5 kg |
